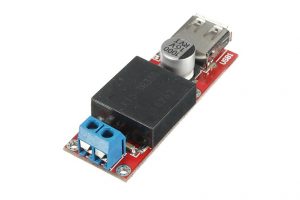

5V USB Output Converter DC 7V-24V To 5V 3A Step-Down Buck KIS3R33S Module KIS-3R33S
DC 7V-24V to 5V 3A Step-Down Buck KIS3R33S Module ,5V USB Output Converter
Description:
- Modules nature: non-isolated Buck
- Rectification: Non-synchronous rectification
- Input voltage: DC 7- 24V
- Output voltage: DC 5V
- Output current: 3A (max)
- Conversion efficiency: 96% (MAX)
- Switching frequency: 340KHz
- Output ripple: 30mV (max)
- Load regulation: ± 0.5%
- Voltage regulation: ± 2.5%
- Operating Temperature: -40 ° C to +85 ° C – With Overcurrent Protection
- Dimension: 60 x 21 x 14mm (L x W x H,approx)
Applications:
DIY Mobile Power Supply, to achieve 5V output for charging Phone, MP3, MP4, PSP etc.
 |
 |
