7.5 inch E-Ink Display panel e-Paper raw display panel with 3/ 4-wire SPI Two -color Display for Raspberry Pi Arduino
Overview:

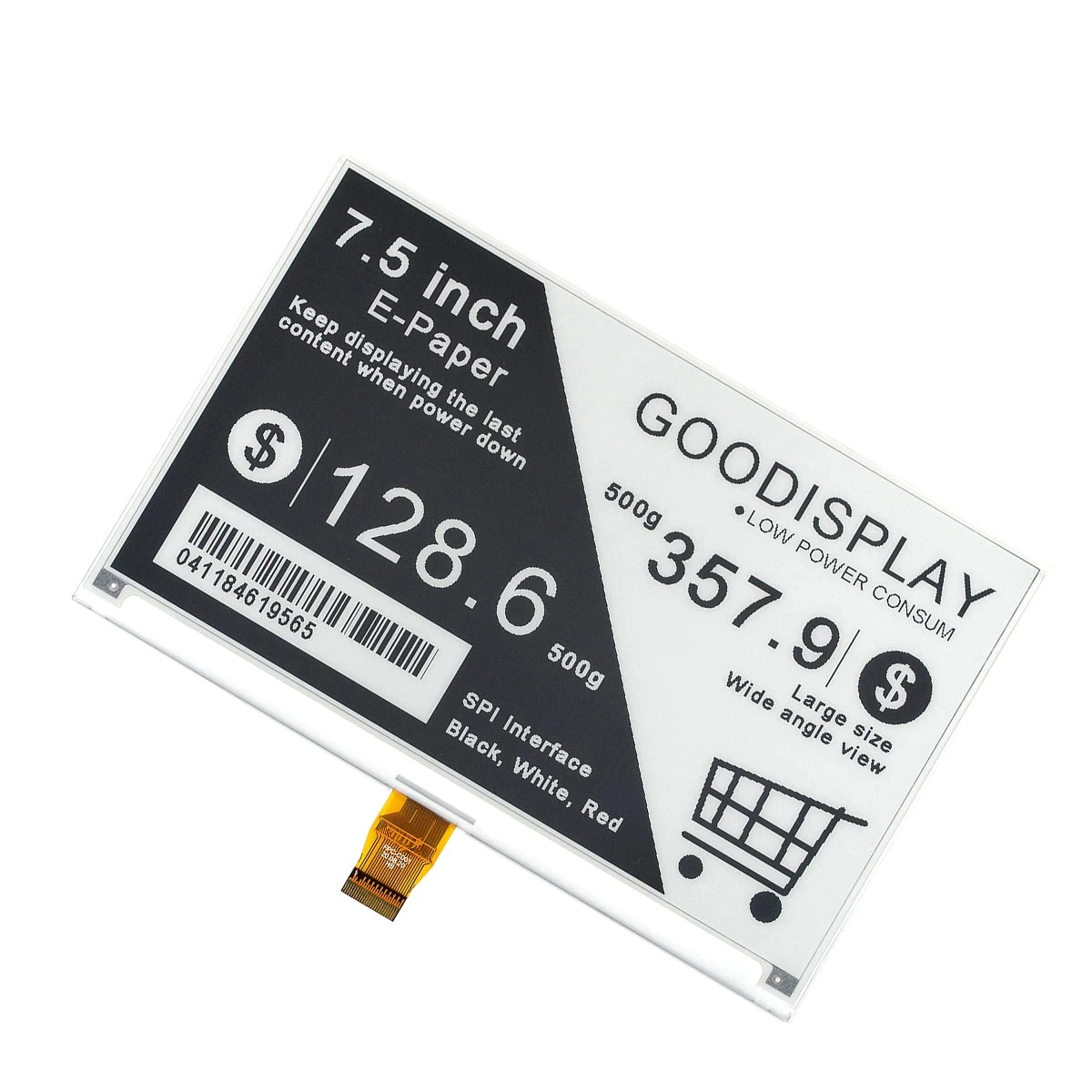

This is an E-Ink raw display, 7.5inch, 800×480 resolution, with embedded controller, communicating via SPI interface.
This is a connection board with a 7.5 inch e-ink screen with 800×480 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don’t require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.
This 7.5 inch e-ink display is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.
Features:
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)
| SIZE | 7.5 inch |
| Refresh power: | 38mW(typ.) |
| Standby power: | <0.017mW |
| RESOLUTION | 800×480 |
| OUTLINE SIZE(mm) | 170.2×111.2×1.25 |
| ACTIVE SIZE(mm) | 163.2×97.72 |
| PIXEL PITCH(mm) | 0.204×0.204 |
| OPERATING TEMP. | 0℃~50℃ |
| STORAGE TEMP. | -25℃~70℃ |
| CONNECTOR | 24 Pin FPC |
| MAX GRAYSCALE | 4 |
| COLOR | Black,White |
| INTERFACE | SPI |
| FULL REFRESH(s) | 3 |
| POWER CONSUMPTION OF THE REFRESH(mW) | 26.4 |
| STANDBY POWER CONSUMPTION (mW) | 0.0165 |
Refresh power: 38mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°
