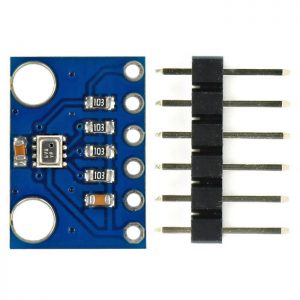

BMP280 I2C / SPI Digital Barometric Pressure Sensor, Replaces BMP180 Digital Barometric Pressure Sensor Module For Arduino, High Precision Atmospheric Sensor
Description:
- Size: 21mm x 18mm
- 1.71V to 3.6V Supply Voltage
- Max I2C Speed: 3.4Mhz
- Low power consumption – 2.7uA at 1Hz
- I2C , SPI(4 Wire) , SPI(3 Wire) interface
- Very low noise – up to 0.2Pa (1.7cm) and 0.01 temperature
- Full calibrated
- Pressure Range: 300hPa to 1100hPa (+9000m to -500m)
- Communication interface: I2C or SPI;
Typical application:
- Enhancement of GPS navigation
- e.g.time-to-first-fix improvement,dead-reckoning,slope detection
- Indoor navigation(floor detection,elevator detection)
- Outdoor navigation,leisure and sports applications
- Weather forecast
- Health care application(e.g. sirometry)
- Vertical velocity indication(e.g. risk/sink speed)
- Target devices
- Handsets such as mobile phones ,table PCs,GPS devices
- Navigation systems
- Portable health caredevices
- Home weather stations
- Flying toys
- Watches
