MEGA 2560 R3 | CH340G ATmega2560 AVR USB board (ATMEGA2560 ) for arduino 2560

Posted on November 10, 2018November 10, 2018 by admin

MEGA 2560 R3 !!!CH340G ATmega2560 AVR USB board (ATMEGA2560 ) for arduino 2560 Built on the Atmel ATmega2560 microcontroller and USB-UART interface chip CH340G. Board for functionality similar to the Arduino Mega 2560. It is a budget, but the same stable, and uses the original chips ATmega2560 (16 MHz). The board used the chip CH340G Read more about MEGA 2560 R3 | CH340G ATmega2560 AVR USB board (ATMEGA2560 ) for arduino 2560[…]

DOIT ESP32 Development Board WiFi+Bluetooth Ultra-Low Power Consumption Dual Core ESP-32 ESP-32S ESP 32 Similar ESP8266

Posted on April 23, 2017April 23, 2017 by admin

DOIT ESP32 Development Board WiFi+Bluetooth Ultra-Low Power Consumption Dual Core ESP-32 ESP-32S ESP 32 Similar ESP8266 ESP32 is integrated with antenna and RF balun, power amplifier, low-noise amplifiers, filters, and power management module. The entire solution takes up the least amount of printed circuit board area. This board is used with 2.4 GHz dual-mode Wi-Fi and Read more about DOIT ESP32 Development Board WiFi+Bluetooth Ultra-Low Power Consumption Dual Core ESP-32 ESP-32S ESP 32 Similar ESP8266[…]

STM32F103C8T6 ARM STM32 Minimum System Development Board Module For arduino

Posted on March 11, 2017March 14, 2017 by admin

STM32F103C8T6 ARM STM32 Minimum System Development Board Module For arduino Model: STM32F103C8T6. Core: ARM 32 Cortex-M3 CPU. 72MHz work frequency. 64K flash memory, 20K SRAM. 2.0-3.6V power, I/O. Reset(POR/PDR). 4-16MHz crystal. On-board Mini USB interface, you can give the board power supply and USB communication. Size:5.3cm x 2.2cm.

D1 mini – Mini NodeMcu 4M bytes Lua WIFI Internet of Things development board based ESP8266 by WeMos

Posted on January 26, 2017March 14, 2017 by admin

D1 mini – Mini NodeMcu 4M bytes Lua WIFI Internet of Things development board based ESP8266 by WeMos 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0) 1 analog input(3.3V max input) a Micro USB connection Package Included: 1×WeMos D1 mini 2×Long female pins 2×Short female pins 2×Normal pins

Pro Mini electronic building blocks Interactive Media ATMEGA328P 5V/16M for arduino Compatible Nano

Posted on October 17, 2014January 3, 2017 by admin

Pro Mini electronic building blocks Interactive Media ATMEGA328P 5V/16M for arduino Compatible Nano Mini Pro is a microcontroller board. It has 14 digital input / output pins (of which 6 can be used as PWM outputs), Eight analog inputs, a 16MHz resonator, a reset button, mounting hole pin head. Technical parameters: 14 Digital input / output Read more about Pro Mini electronic building blocks Interactive Media ATMEGA328P 5V/16M for arduino Compatible Nano[…]

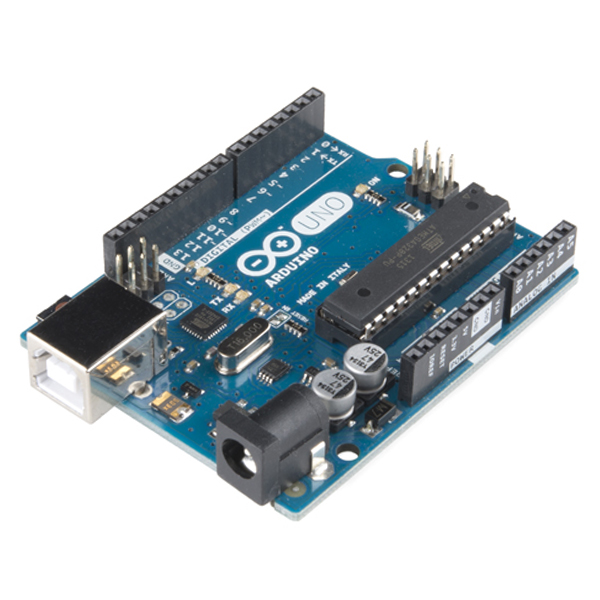

UNO R3 MEGA328P ATMEGA16U2 for Arduino + Free USB Cable, simulate USB HID

Posted on July 18, 2014January 3, 2017 by admin

ATMEGA16U2 can more easily simulate UNO can simulate USB HID, such as the MIDI/Joystick/the rid_device_info_keyboard. UNO R3 MEGA328P ATMEGA16U2 for Arduino + Free USB Cable, simulate USB HID Features 1. Increase the needle interface, so that it can be applied to the connection module when using ordinary dupont line! Arduino profile What is the Arduino Read more about UNO R3 MEGA328P ATMEGA16U2 for Arduino + Free USB Cable, simulate USB HID[…]
