DSM501A Dust Sensor Module PM2.5 Detection Dector For Arduino For Air condition
DSM501 dust sensor can sense that, tobacco smoke and pollen, house dust, such as heating automatic suction device, adjustable resistance is set up to detect the size of the dust.Using the same as the particle counter principle as the foundation, to detect the absolute number of particles per unit volume.
Feature:
- Working voltage: DC 5.0 (plus and Minus 0.5V)

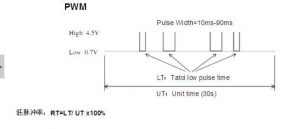

- Output model: PWM
- Working current(Max): 90mA
- Humidity Range: Storage Conditions 0-99% RH
- Humidity Range:Working Conditions 0-95% RH
- Temperature Range: Storage Conditions -20 to 80 degree
- Temperature Range: Working Conditions -20 to 60 degree
- Stability time: Heater power on after about 1 minute.
Dust sensor DSM501 feature:
- DSM501 dust sensor can sense that, tobacco smoke and pollen, house dust, etc
- More than 1 micron tiny particles.
- Small volume, light weight, easy to install.
- 5v input circuit, signal processing.
- Hidden within the airflow generator, able to attract the external atmosphere.
- Maintenance is simple and can keep the sensor characteristics for a long time.
Constitute:
- Light-emitting diode (LED) light
- The detector
- Signal amplifier circuit
- output driver circuit 1
- output driver circuit 2
- The heating
Description:
- PWM output
- Compact size and light weight
- Easy installation
- Single power supply
Application:
- Air purifier or the best allergy air purifier
- The air conditioning
- Air quality monitoring
- Breathing machine, etc.
  |
 |
