MMA7361 (Replace MMA7260) Accelerometer Sensor Module For Arduino TK0448

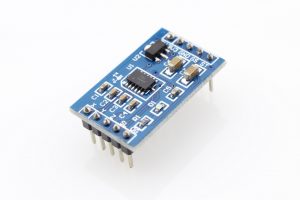

This is a breakout board for MMA7361 three-axis analog accelerometer. The sensor requires a very low amount of power and has a g-select input which switches the accelerometer between ±1.5g and ±6g measurement ranges. Other features include a sleep mode, signal conditioning, a 1-pole low pass filter, temperature compensation, self test, and 0g-detect which detects linear freefall. Zero-g offset and sensitivity are factory set and require no external devices.
Features:
- 100% Brand New
- Size: 20(mm) x 15(mm)
- On-board MMA7361(replace MMA7260),low cost, micro capacitive acceleration sensor
- Support 5V/3.3V voltage input, on-board RT9161, has much lower pressure drop and much faster load corresponding speed than 1117,very suitable for high noise power environment
- Range is chosen by MCU IO, or resistance
- Common pins have been drawn forth, inserted pins are standard 100mil(2.54mm),convenient for dot matrix board
- Dormancy enable can be controlled by MCU IO
- PCB board is gold-plated both sides
  |
 |
