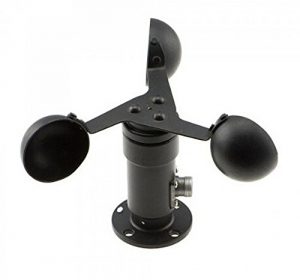

Wind speed sensor voltage signal 4-20MA output wind speed transmitter anemometer, metal material
Technical parameters:
- Signal output way: 4 ~ 20 mA aluminum alloy material
- Input voltage: DC24V/DC12V/DC5V
- Response time: < 1 S
- Transmission distance: > 1km
- Measurement range: 0 ~ 5 M/S, 0 ~ 30 M/S, 0 ~ 50 M/S ( choose)
- Measurement accuracy: Plus or minus 3%
- Start wind speed: < 0.6 M/S
- Environment temperature: E: -35 ~ 85 C (often-used) L: -55 to 150 C
- Level position: + 80 Rotation, with a hammer, automatically adjust the horizontal position
- Potential lead: Three wire or two wire
- Material: Aluminum alloy, the surface waterproof, prevent corrosion treatment.
- cable:3m
Connection of wind sensor
red: power + 12-24v
black: power – 12-24v
yellow: signal 0-5v output
blue: signal 4-20ma output
